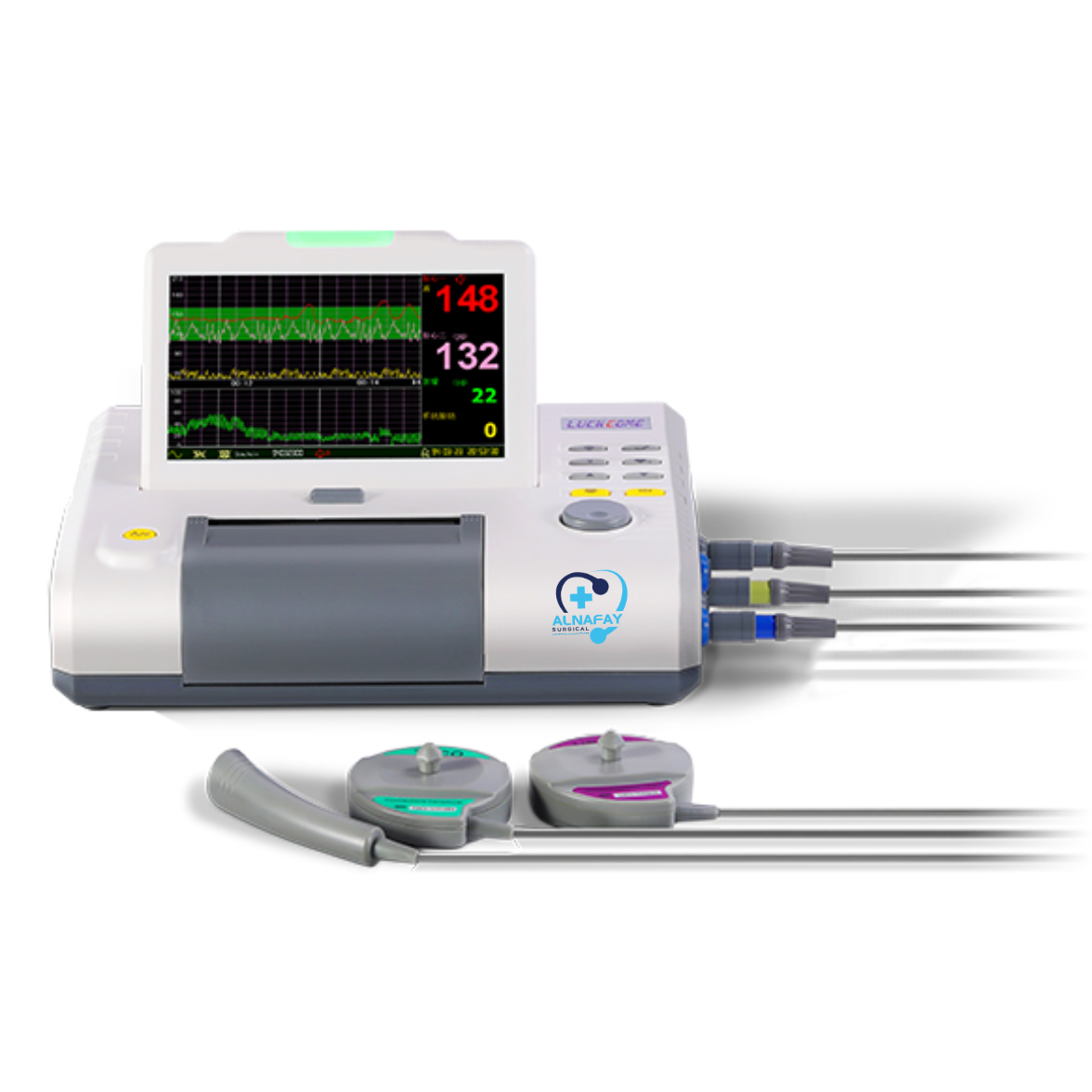

Fetal Monitor L8 LED + LCD is an innovative solution designed at a low cost to make routine fetal monitoring simple and effective. This device has been designed to provide maximum comfort and ease of use for both the physician and patient. It is ideal for use in all conditions, both at home and in the maternity ward.

This fetal monitor mother and fetus is equipped with ultrasonic sensors and TOKO, as well as a marker of pregnancy status. Features of this product meets the latest international standards.

Features L8 LED + LCD:

Lightweight and compact design, easy to use buttons on the front panel.

LED indicators that show fetal heart rate, fetal movements and TOKO.

Setting up the system is carried out easily and at any time.

Built-in thermal printer can print graphics in heart rate, TOKO.

Standard conditions of the patient and the marker button is a marker of clinical events, allow to conduct an independent accounting of clinical events.

Ultrasonic sensor with high sensitivity and pulse wave 1 MHz, and low power ultrasound will ensure the safety of the fetus.

Ability to work as from the AC mains, and a lithium battery.

The advanced technology of digital signal processing, which provides accuracy and reliability.

No extraneous noise or unwanted sounds in the dynamics.

Sensors 3 to 1 to avoid cables weave.

Built-in interface allows you to connect to hospital information networks.

Also, the device has a wide range of different alarm signals: signal the end of the monitoring time the paper shortage signal.

Measuring range:

Fetal heart rate 50 – 210 beats / min;

TOKO 0 to 100 units.

Dimensions: 295SH × 240g × 73B mm.

Weight: 1.75 kg.

Warranty period: 12 months.

Modification of control without a mother:

1. Fetal Monitor;

2. The power cord;

3. AC adapter;

4. The sensor 3 in 1 (2 for rate control fetuses, uterus and fetal movement tone);

5. Event Marker;

6. Belt Sensor fixing – 2 pcs .;

7. Paper;

8. Instructions;

9. Warranty Card;

10. A copy of the registration certificate of the Ministry of Health of Ukraine;

11. A copy of the Certificate of Compliance UkrSEPRO.

In a modification to the mother’s control in addition:

1. The cuff for measuring blood pressure;

2. Extension to the cuff;

3. SPO2 sensor.

Attributes fetal monitor

Display LED + LCD

Thermal Yes

Paper, 112 mm

FHR Yes

HR 2nd fetal Option

The tone of the uterus Yes

The movement of the fetus Yes

Event Marker Yes

Archive data Yes

Automatic analysis of Fischer No

Control of the mother: HR, SPO2, BP No

Control of the mother: HR, SPO2, BP, temperature, respiratory rate, ECG No

Yes Built-in battery
